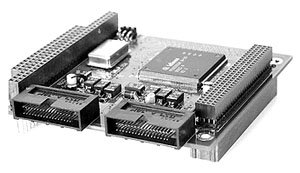

High-speed Multiplexer Tau-104
Specifications
Documentation
Software
 |
Features:
|
Multiplexers of Tau-104 family are designed for use in Intel-compatible PCs with PC-104plus bus support. These multiplexers provide connection of communication and terminal equipment with V.35, RS-232, RS-530, RS-449, RS-485, X.21, V.10, or V11 interfaces to PCs.
Tau-104 multiplexer implements HDLC synchronous protocol. Data is transmitted over PC-104 bus in Master mode that ensures an effective use of PC's input/output bus.
Tau-104 multiplexer has two data transmission links. Each serial link of Tau-104 standard version is equipped with a multi-standard interface. Interface type is selected automatically depending on the type of the cable connected.
The adapter is supplied with Linux and FreeBSD 4.x, 5.x, 6.x drivers. There is a Driver Development Kit available for developers of special-purpose software.
| PC Bus Interface | |
|---|---|
| Bus Type | PC104+ (PCI), 33 MHz/32-bit |
| Serial Interfaces | |
| Data Transfer Rate per direction for each channel simultaneous operation | 10 Mbps |
| Bit Rate Generator | Independent per channel |
| Synchronous Protocol | HDLC |
| Error Detection | Cyclic Redundancy Check CRC-16, CRC-CCITT |
| Clock Options | TXCIN, RXCIN, TXCOUT or DPLL, Software selectable per channel |
| Modem Control Signals | DTR, DSR, CTS, RTS, CD |
| Operating Systems and Protocols | |
| Linux | PPP, Cisco/HDLC, Frame Relay |
| FreeBSD 4.x, 5.x, 6.x (FreeBSD 7.x is not supported) |
PPP, Cisco/HDLC, Frame Relay |
User's Manual in Russian
Справочник по интерфейсным кабелям Cronyx.
