Digital Satellite Adapter DVB VP-1020

Specifications
Download software
Documentation

Digital Satellite Adapter DVB VP-1020 Main features:
  • Tuner reception frequency: 950 to 2150 MHz
  • Addition LNB-output F-type 75 Ohm socket
  • Symbol Rate: 1 to 45 Msps
  • Compliance with the ETSI 301.192 Standard
  • Reception of packets up to 65,535 bytes in size (MTU)
  • Drivers and software for Windows 2000/XP/2003 operating systems
  • Graphical display of signal level, number of errors, and reception speed for the last 10 minutes
  • Controllable blocking of potentially unsafe IP-packets (firewall)
  • Controllable mechanism for the detection of illegal use of the access service
  • Compliance with the PCI 2.2 Bus Standard
  • Software and User's Manual in English and Russian

Cronyx DVB VP-1020 is the PCI-adapter for satellite access to Internet and TV receiving in DVB standard (Digital Video Broadcasting).

The Cronyx DVB VP-1020 adapter is designed for reception of digital satellite channels, primarily for satellite Internet access, and reception of digital video and audio programs. In the low-budget satellite receiver class, the VP-1020 adapter has one of the best price/quality ratios in the market.

The supplied software allows you to maintain a list of satellites and transponders, automatically detecting active data streams.

The unique capabilities of the adapter include tracking of signal quality, error level, and received data baud rate, the mechanism to detect illegal use of your account, and a built-in incoming IP-packet firewall.

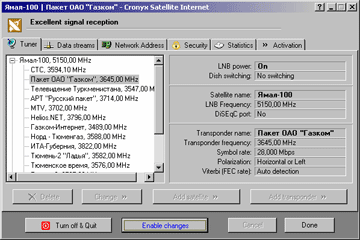

Satellite and Transponder Selection
Cronyx SaNet - Satellite and Transponder Selection

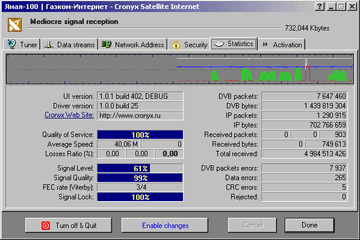

Monitoring and Statistics
Cronyx SaNet - Statistics

Visual signal control allows you to quickly evaluate and eliminate any negative factor influence. The Cronyx SaNet program has a clear, intuitive interface, complying with the Windows GUI recommendations.

Specifications

Network capabilities
DVB Protocols Multi-protocol Encapsulation (MPE)
Network Protocols IPv4, IPv6, LLC SNAP
Maximal size of receive packets (MTU) 65535 bytes
Multicast & Broadcast Filtering Controlled, at IP and MAC levels
Routing Multicast and Unicast
Compliance with ETSI 301.192 Standard
Network Security Controllable blocking of potentially unsafe IP-packets (firewall)
Interface with Operation System NDIS 5.0, NDIS 5.1
Monitoring
Visualisation Graphical display of signal level, number of errors, and reception speed for the last 10 minutes
Statistics & Information DVB & IP streams reception statistics. Total received data volume information. Display of active data streams (PIDs) in the transponder.
Quality & Errors indication Indication of the relative error level: average, and snapshot error levels, detected by the DVB-decoder, total error level (including uncorrected errors, data errors, and CRC errors). Receptions, speed, snapshot and average signal level, signal lock reliability
Errors Counters DVB error, CRC error, and blocked IP-packet counters
Tuner
Frequency range 950 to 2150 MHz
Automatic sensitivity adjustment range -65 to 25 dBm
Input and output sockets F-type 75 Ohm
Decoder (QPSK & FEC)
QPS Filter With a cosine square root front edge, and a 0.35 falling edge
Symbol Rate from 1 to 45 Msps
Viterby (FEC) Auto
Converter and switch control
LNB supply voltage Selectable between 13 or 18 Volts, with a 400 mA current, overvoltage and short circuit protection
DiSEqC support 1.0, 1.1, 1.2
Dish and LNB control 22 KHz, Data Burst and Tone Burst support
Demultiplexing
Data reception rate up to 78.75 Mbit/s
Maximum number of simultaneously used streams (PID filtering sections) 8192
Stream capture PES & TS
Filtering PES & TS
Error control CRC, Checksum32, parity
PCI interface
Compliance with standard PCI 2.2
Peak transfer rate (PCI bus-master) up to 132 Mbytes/s
Buffering Bidirectional FIFO
Other
Drivers & softwate Windows 2000/XP/2003 operating systems (Windows 95/98/Me/NT4 not supported)
Installation Plug&Play
Sharing IRQ for prevention conflict with other devices Yes
Dimensions (excluding mount and PCI-contacts) 125 x 95 mm (PCI full profile)
Operating conditions
Operating temperature -5 to 65°C
Storage temperature -55 to 85°C
Humidity 0% to 95% (without condensation)

Documentation

Some of the documents are in Adobe® Acrobat® Reader® format

PDF User's Manual in English
PDF Brief device description in Russian
